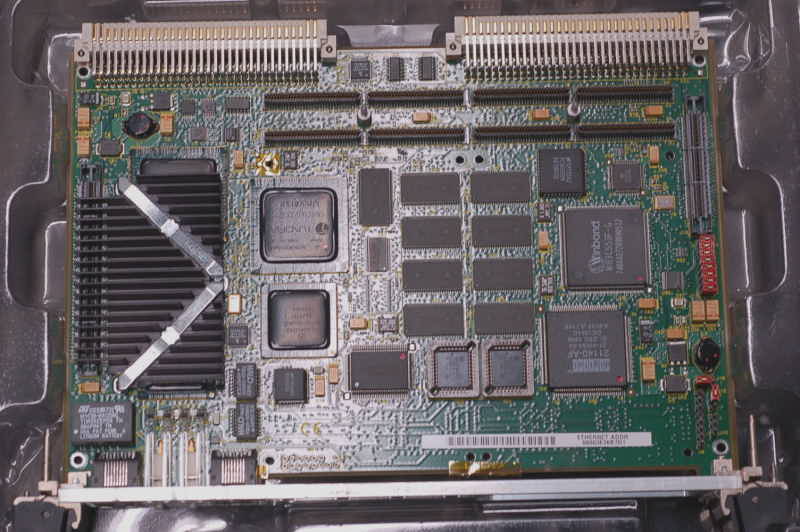

MOTOROLA MVME2300

SINGLE BOARD COMPUTERS

WE CAN  SUPPLY OR CUSTOM BUILD

ANY VARIETY OF MVME2300 IN THE TABLE BELOW

THESE CAN BE CUSTOMIZED WITH ANY FIRMWARE VERSION FOR YOUR APPLICATION

We can clone / duplicate anything you can provide.

ALL BOARDS GO THROUGH FULL FUNCTIONAL TEST PRIOR TO SHIPMENT.

Motorola P/N	Description	CPU Speed	Memory Size	Price
MVME2301	200 MHz MPC603, 16MB ECC DRAM, IEEE front panel, aka Eclipse 344540	200Mhz	16MB	Email for price and availability
MVME2301-900	200 MHz MPC603, 16MB ECC DRAM, Scanbe front panel	200Mhz	16MB	Email for price and availability
MVME2302	200 MHz MPC603, 32MB ECC DRAM, IEEE front panel	200Mhz	32MB	Email for price and availability
MVME2302-900	200 MHz MPC603, 32MB ECC DRAM, Scanbe front panel	200Mhz	32MB	Email for price and availability
MVME2303	200 MHz MPC603, 64MB ECC DRAM (not available with connector for PCI expansion), IEEE front panel	200Mhz	64MB	Email for price and availability
MVME2303-900	200 MHz MPC603, 64MB ECC DRAM, Scanbe front panel	200Mhz	64MB	Email for price and availability
MVME2304	200 MHz MPC603, 128MB ECC DRAM, IEEE front panel	200Mhz	128MB	Email for price and availability
MVME2304-900	200 MHz MPC603, 128MB ECC DRAM, Scanbe front panel	200Mhz	128MB	Email for price and availability
MVME2304-0111	333 MHz MPC604, 16MB ECC DRAM, Scanbe front panel	333Mhz	16MB	Email for price and availability
MVME2304-0113	333 MHz MPC604, 16MB ECC DRAM, IEEE front panel	333Mhz	16MB	Email for price and availability
MVME2304-0121	333 MHz MPC604, 32MB ECC DRAM, Scanbe front panel	333Mhz	32MB	Email for price and availability
MVME2304-0121SC	333 MHz MPC604, 32MB ECC DRAM, Scanbe front panel w/ serial I/O pinout	333Mhz	32MB	Email for price and availability
MVME2304-0123	333 MHz MPC604, 32MB ECC DRAM, IEEE front panel	333Mhz	32MB	Email for price and availability
MVME2304-0131	333 MHz MPC604, 64MB ECC DRAM, Scanbe front panel	333Mhz	64MB	Email for price and availability
MVME2304-0131SC	333 MHz MPC604, 64MB ECC DRAM, Scanbe front panel w/ serial I/O pinout	333Mhz	64MB	Email for price and availability
MVME2304-0133	333 MHz MPC604, 64MB ECC DRAM, IEEE front panel	333Mhz	64MB	Email for price and availability
MVME2304-0141	333 MHz MPC604, 128MB ECC DRAM, Scanbe front panel Possible OEM part numbers: H3 Console VME Based Motorola Power PC Circuit RIP Board Assy. P/N: 2197234-2. Usual M/N: MVME23XX . ETC P/N:  MVME2304-141 . For General Electric - LightSpeed QX/i (1.X), Plus (2.X), Ultra (3.X)	333Mhz	128MB	Email for price and availability
MVME2304-0141SC	333 MHz MPC604, 128MB ECC DRAM, Scanbe front panel w/serial I/O pinout	333Mhz	128MB	Email for price and availability
MVME2304-0143	333 MHz MPC604, 128MB ECC DRAM, IEEE front panel	333Mhz	128MB	Email for price and availability
MVME2305	300 MHz MPC604, 16MB ECC DRAM, 5MB Flash	300Mhz	16MB	Email for price and availability
MVME2305-900	300 MHz MPC604, 16MB ECC DRAM, 5MB Flash, Scanbe front panel	300Mhz	16MB	Email for price and availability
MVME2306	300 MHz MPC604, 32MB ECC DRAM, 5MB Flash	300Mhz	32MB	Email for price and availability
MVME2306-900	300 MHz MPC604, 32MB ECC DRAM, 5MB Flash, Scanbe front panel Possible OEM part numbers: Octane1 Console O2 Computer and H1.1 Software VME-Based RIP Board Assy Usual M/N: MVME2306 For: General Electric - LightSpeed QX/i (1.X) P/N: 2197234-3	300Mhz	32MB	Email for price and availability
MVME2307	300 MHz MPC604, 64MB ECC DRAM, 5MB Flash	300Mhz	64MB	Email for price and availability
MVME2307-900	300 MHz MPC604, 64MB ECC DRAM, 5MB Flash, Scanbe front panel	300Mhz	64MB	Email for price and availability
MVME2308	300 MHz MPC604, 128MB ECC DRAM, 5MB Flash, NSN 5998-01-473-6190, P/N N100439	300Mhz	128MB	Email for price and availability
MVME2308-900	300 MHz MPC604, 128MB ECC DRAM, 5MB Flash, Scanbe front panel	300Mhz	128MB	Email for price and availability
	2197234  /   2197234-4 - VME BASED POWER PC BOARD-H1.2 W/O2 for GE LightSpeed, inquire for details			Email for price and availability
PMC Expansion Modules:
PMCSPAN-002	Primary PCI expansion, mates directly to the MVME2300 providing slots for either two single-wide or one double-wide IEEE P1386.1 compliant PMC cards; optional PMCSPAN-010			Email for price and availability
PMCSPAN(1)-002	PMCSPAN-002 with original VME Scanbe ejector handles			Email for price and availability
PMCSPAN-010	Secondary PCI expansion, plugs directly into PMCSPAN-002 providing two additional PMC slots			Email for price and availability
PMCSPAN(1)-010	PMCSPAN-010 with original VME Scanbe ejector handles			Email for price and availability
